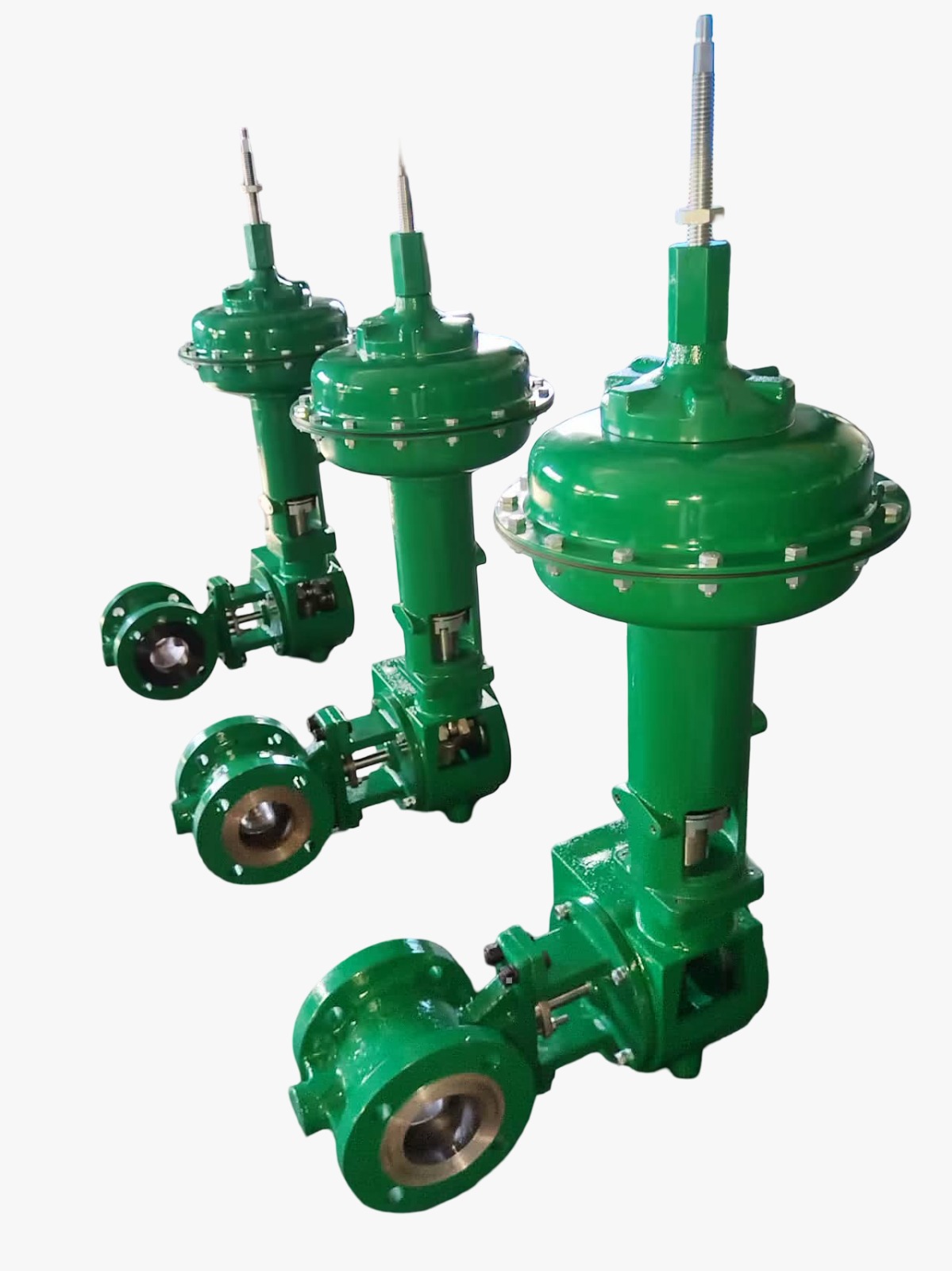

Rotork make V-Notch Ball Valves are used in industries with flow of abrasive slurry and solids. These valves have straight bore thus ensuring obstruction free flow suitable for viscous fluids and provides high rangebility.
Ball are machined with fine finish, hard chrome plated and mirror polished thereby ensuring smooth operation, low friction and long ball seal life. V-notch in these valves are carefully designed to ensure nearly equal percent characteristics.
| Valve Sizes | 25mm thru 600mm / 1” thru 24” |
|---|---|
| End Connections | Flangeless Body with Face to Face as per and ISA 75.04 Flanged Body with Face to Face as per ANSI B 16.10 (Short) |
| Face Finish | AARH (125-250), Smooth finish available on Request |
| Ratings | Flanged - ANSI 150#, 300# & 600# Flangeless - ANSI 150#, 300# & 600# |
| Maximum Pressure - Temperature Ratings | Bodies confirm to Pressure-Temperature ratings as shown in ANSI B16.34 for applicable materials for ANSI 150#, 300#, 600#. |
| Shut Off Classification | As per Pressure Ratings Graphs for Seats |
| Flow Direction | Standard 'Flow Direction' of all the valves is flow from Convex side of Ball |
| Flow Characteristics | Modified Equal Percentage |
| Operator / Actuator | Lever, Gear, Actuator (Pneumatic, and Electric Motorized) |
