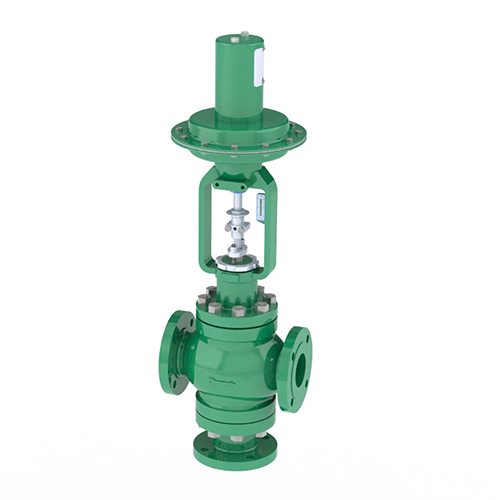

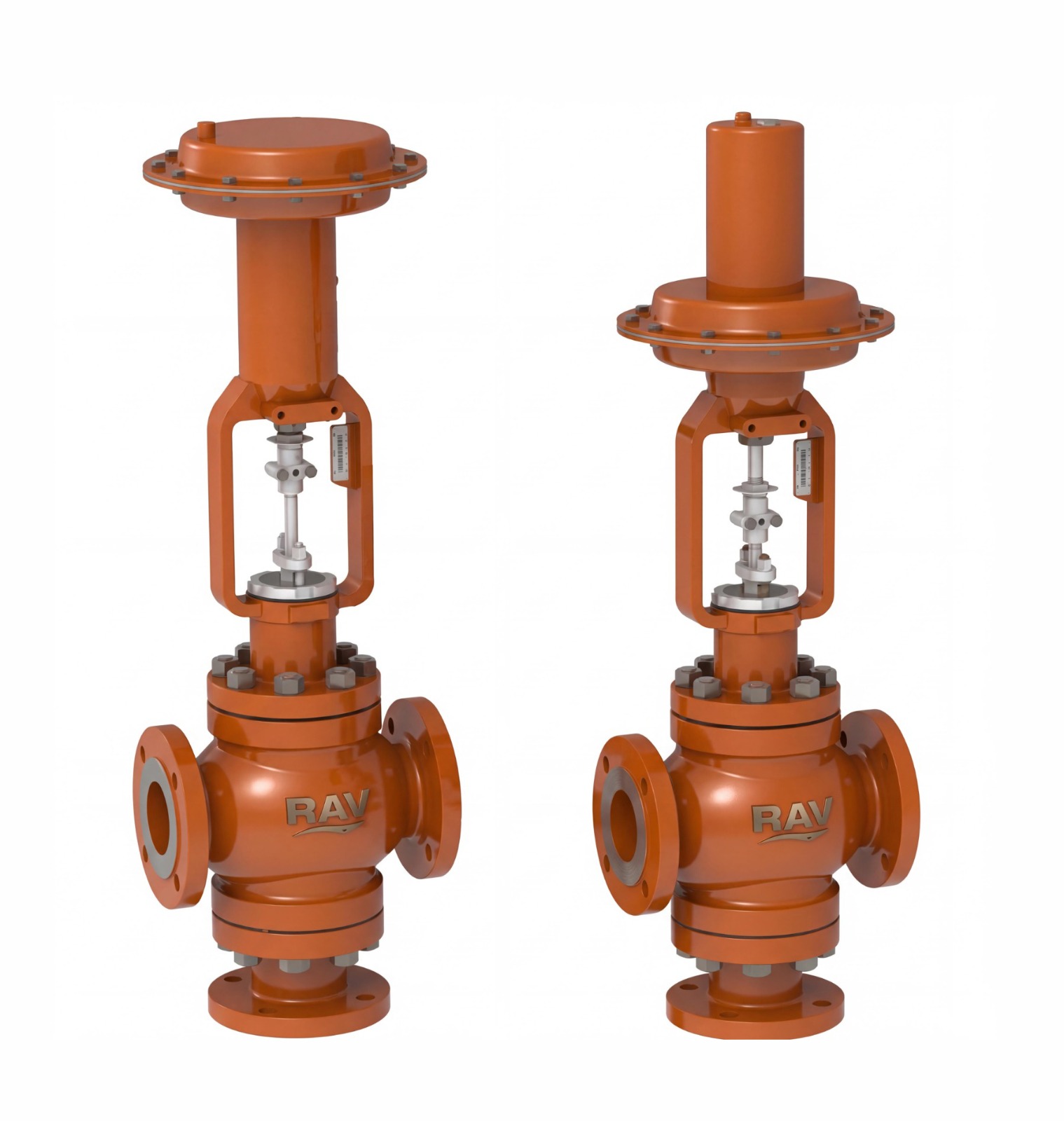

3 way control valves are used to combine two flows or to divertone flow into two outlets. These valves replace and perform thefunctions of two single ported control valves acting in opposite directions. They are mainly used to control thecirculation of water, oil, sea water or other liquid in heating or coolingapplications involving heat exchanger bypass control.
| DESIGN | ASME B16-34 |
|---|---|
| VALVE SIZE | 15 to 350 mm ( 1/2” to 14” ) |
| RATING | ANSI 150 to 600 Equivalents to BS, DIN, IS, JIS, etc. |
| FACE TO FACE | ISA S.75.03 up to 600# |
| END CONNECTION | Flanged - 15mm to 350mm ( 1/2” to 14” ) Screwed - 15mm to 50mm ( 1/2” to 2” ) |
| BODY MATERIALS | Carbon Steel, Chrome-moly Steel, Stainless Steel,Monel, Alloy20, Hastelloy B/C, Duplex Stainless Steel, Aluminum Bronze, PP, PTFE etc. |
| BONNET | Standard upto 250°C Normalizing (Finned) between 250°C to 500°C Extended cold service - 20°C to - 100°C Cryogenic - 100ºC to - 250ºC Bellows seals. |
| GLAND PACKING | Grafoil / PTFE V Rings, Low Emission |
| TRIM DESIGNS | Skirt Guided. Linear, Pressure Balance. |
| TRIM MATERIALS | Stainless Steel, Alloy20, Monel, Duplex Stainless Steel,13% Chrome Steel Hastelloy B/C, Stellite (Alloy 6 ) |
| CHARACTERISTICS | Equal Percentage, Linear and Quick Opening. |
| SEAT LEAKAGE | As per ANSI/FCI-70-2 Class III. IV, V and VI (STANDARD LEAKAGE RATES) Metal to Metal Seating Class IV, Less than 0.01% of rated Cv. Metal to Soft Seating - Bubble tight (Zero Leakage) |
| ACTUATOR TYPE | Diaphragm, Piston or Electric. |
| ACTUATOR ACTION | Direct / Reverse Acting. |
| DIAPHRAGM | Nitrile / Neoprene |
| SPRING RANGES | 3 - 15 PSIG ( 0.2 - 1.0 Kg/cm² ) 6 - 30 PSIG ( 0.4 - 2.0 Kg/cm² ) |
| AIR SUPPLY | 20 - 35 PSIG (1.4 - 2.5 Kg/cm² ) |
| AIR CONNECTION | 1/ 4” or 1/ 2” NPT |
| ACCESSORIES | Valve Positioner - Pneumatic , Electro Pneumatic, Smart Positioner. Instruments- Airset, Solenoid Valve, Air Lock, Volume Booster, Position Transmitter, Limit- Proximity Switches etc. Features- Top or Side Mounted handwheel, Limit Stops Removable Blind Head, Steam Jacketing, etc. |
