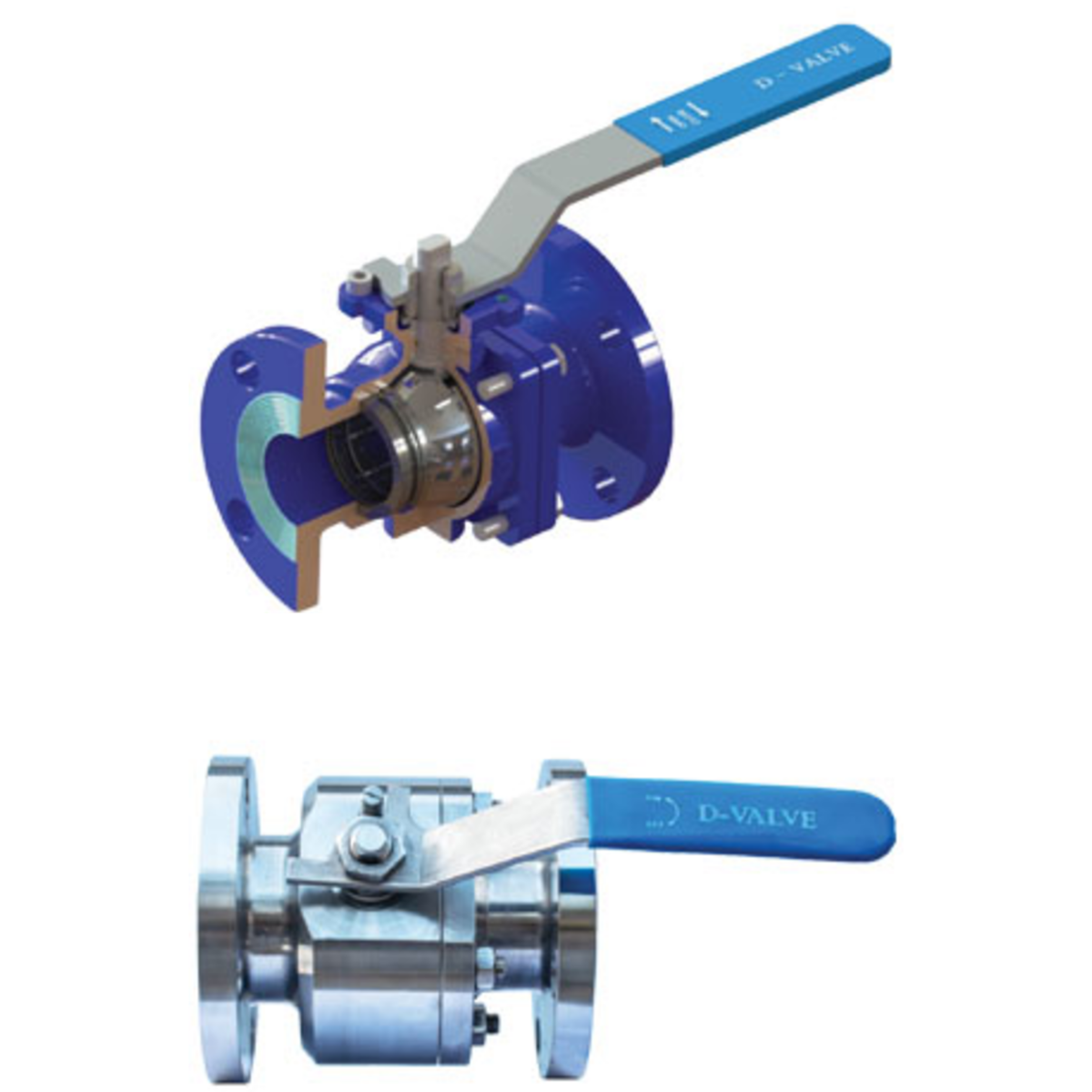

There must be an alternate for soft seated ball valves because there are limitations of soft seated floating ball valves for certain applications like high temperature, abrasive, slurry. D valve has a wide range of high performance metal seated ball valves in floating design to overcome the above limitations of soft seated floating ball valves. The special coatings provided on ball & seat surfaces ensure reliability and durability in any severe service conditions. Precisely machined and lapped metal seat and ball combination guarantees good repeatability in performance. Two Pieces and Three piece metal seat Ball Valves are available.
| Model | DV-FBM3, DV-CBM2, DV-CBM3 |
|---|---|
| Sizes | NPS ½” (DN 15) - NPS 8” (DN 200) |
| Type | Floating Type |
| Seat Design | Metal Seat and Lip seal |
| Pressure Class | ASME Class 150# - Class 300# |
| Flow bore | Full Port, Reduced Port |
| End Connection | Flanged FF, Flanged RF, Flanged RTJ, Butt Weld |
| Valve Design Standard | API 6D, ASME B 16.34 / ISO 17292 |
| Flange Conformity | ASME B 16.5 (Other flange standards are available upon request), ASME B 16.25 (Buttweld) |
| Face to Face | API 6D / ASME B 16.10 |
| Pressure Testing Standard | FCI 70.2 / ISO 5208 / BS EN 12266-1 / API 598 |
| Fire safe Design / Standard | API 6FA |
| Material of Construction | Wide range and most suitable material selection available for any kind of application. Refer to Fig. 3G for identifying components and materials. |
| Valve operation | All our ball valves on the above ranges are manually operated with Handle/Lever/Wrenches. Gearboxes and Actuators are available upon request. |
| Design | Two Piece and Three Piece |
|---|---|
| Leakage Class | Class IV Class V Class VI - Uni-Directional |
| Process | Coating Thickness | Working Temperature | Application |
|---|---|---|---|
| Electro less Nickel Plating (ENP) | 50µ - 80µ | 400°C | Oil & Gas, General application |
| Hard chromium Plating | 50µ - 80µ | 300°C | Oil & Gas, General application |
| Tungsten Carbide - HVOF | 250µ - 300µ | 400°C | Abrasive application, Paper & Pulp, Mining |
| Chrome carbide - HVOF | 250µ - 300µ | 800°C | Abrasive application, High Temperature application, Paper & Pulp, Mining |
| Stellite by HVOF | 250µ - 300µ | 600°C | Abrasive application, Paper & Pulp, Mining |
| Process | Coating Thickness | Working Temperature | Application |
|---|---|---|---|
| Tungsten Carbide - HVOF | 250µ - 300µ | 400°C | Abrasive application, Paper & Pulp, Mining |
| Chrome carbide - HVOF | 250µ - 300µ | 800°C | Abrasive application, High Temperature application, Paper & Pulp, Mining |
| Stellite by HVOF | 250µ - 300µ | 600°C | Abrasive application, Paper & Pulp, Mining |
| Stellite by Weld | 2 mm - 3 mm | 600°C | Abrasive application, Paper & Pulp, Mining |
