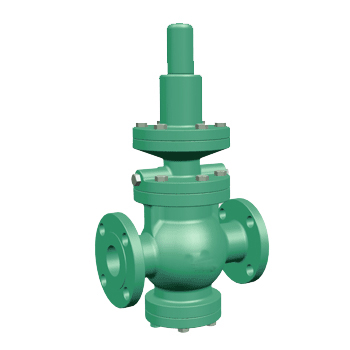

Rotork Self Acting, Pilot & Piston operated Pressure Reducing Valves are most popular for pressure reduction of STEAM in all types of Industries. The Valve operates on Spring Balance principle.
The Downstream pressure is sensed below stainless steel diaphragm which is balanced by the spring tension. Increasing spring tension, increases outlet pressure and vice versa. The Valve has additional external Sense Line provision also, which improves performance and accuracy of outlet pressure.
| Sizes | 1" D 2" to 12" W 16" 25 D 50 to 200 T 250 (EN Type) |
|---|---|
| Orifices | 0.110 to 60.75 in2 (71 to 39,193 mm2 ) |
| Inlet ratings | ANSI Classes 150, 300, 600, 900, 1500, 2500 EN Classes PN 10, PN 16, PN 25, PN 40 |
| Temperature range | -450 to +1000°F (-268 to +538°C) |
| Code | ASME Section VIII (15 psig (1.03 barg) and above) |
| Set pressures | 5 to 6000 psig (0.35 to 413.79 barg) |
