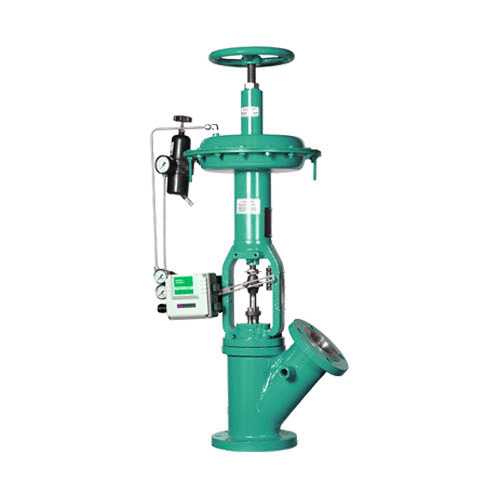

Rotork Flush Bottom Valves are used for process materials discharging applications. These angle-type flush bottom valves are designated for two values and two types of construction.
The first value is the inlet flange connection size which is fixed to the tank or vessel’s bottom pad, and the second value is the size of the port and the outlet flange which is connected to the pipe.
The construction value is where the plug opens into the vessel or the plug opens into the valve body. These valves are available with actuators and manual operations too. Flush Bottom Valves can also be customised with special temperature sensing arrangements within the valve body.
| Size | 1" TO 8" (With One Size Bigger Inlet) |
|---|---|
| Pressure Ratings | 150#, 300# & 600# |
| End Connections | Flanged RF |
| Body Material | Carbon Steel,Stainless Steel,Duplex,Super Duplex,Monel,Inconel,Hastelloy,Aluminium,Bronze&Higher Alloys |
| Plug Options | Contoured |
| Trim Characteristics | On-Off |
| Leakage Class | Class IV & Class VI as per FCI 70-2 |
| Standards | ASME B16.34 |
